Good architecture does not begin with tools. It begins with the operating reality the system needs to support.

Why architecture should not start with technology

That is easy to say and harder to practice, especially when a team is under pressure to move. Once technology options enter the conversation, it becomes tempting to think in terms of platforms, frameworks, integrations, or feature sets. Those choices matter, but they should not be the starting point.

Architecture is not simply a technical arrangement. It is the formal expression of how the system is expected to behave.

If that behavior is not grounded in the workflow, the architecture will eventually drift away from what the business actually needs.

Starting with operational questions

This is why a well-designed system usually starts with questions that sound operational rather than technical.

  1. What is the work moving through the process?
  2. What are the meaningful states it can occupy?
  3. Who can act on it?
  4. What decisions change its status?
  5. What exceptions appear often enough to deserve explicit handling?
  6. What information has to persist over time, and for what purpose?
  7. What needs to be visible in reporting, audit history, or downstream coordination?

Those questions define the shape of the system more than any technology stack does.

Moving from workflow to system design

Take a workflow involving application review, document intake, validation, approval, and follow-up actions.

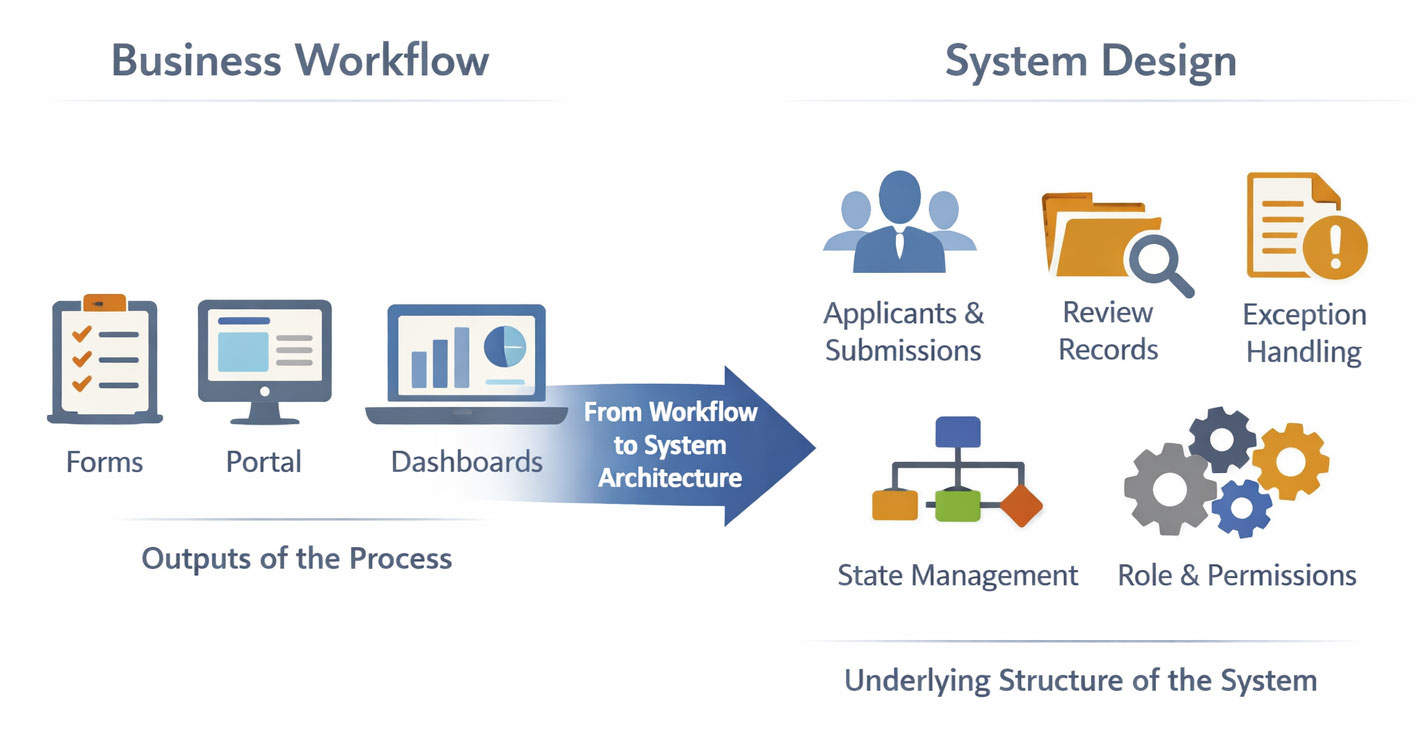

Workflow to Technical Architecture
At first glance, the organization may think it needs a portal, forms, a dashboard, and automated notifications. But those are outputs, not architecture.

Architecture begins when the business identifies the underlying entities: perhaps applicants, submissions, supporting records, review decisions, exception notes, and fulfillment events.

Then come the states: submitted, incomplete, under review, awaiting clarification, approved, denied, fulfilled.

Then the role boundaries: who can review, who can edit, who can approve, who can override, who can see historical actions, who can trigger next-step operations.

This is where the system becomes more than a screen design exercise.

Why structure determines system quality

  • If the states are vague, reporting will be vague.
  • If permissions are loose, accountability will be loose.
  • If exceptions are not modeled, teams will fall back to manual handling.
  • If historical decisions are not represented structurally, the organization will struggle to explain why outcomes occurred.

That is why architecture has to emerge from the workflow itself.

Designing for change and growth

It also needs to reflect how the workflow changes over time. Some systems handle straightforward paths well but fail when real-world variation begins to accumulate.

  • A new exception type appears.
  • A policy changes.
  • A second review layer becomes necessary.
  • A previously simple workflow now requires separate treatment for categories that were once grouped together.

Architecture that only reflects the ideal path tends to become brittle under that kind of growth.

Anticipating variability early

A stronger design asks early where variation is likely to matter.

  1. Which logic should be configurable?
  2. Which states may need expansion later?
  3. Which entities need clear relationships because reporting or downstream processes will depend on them?
  4. Which actions should be traceable at the event level rather than only visible in the latest record state?

These are architectural questions, but they are really questions about operational durability.

Designing for integrations and dependencies

Integrations belong in that conversation too.

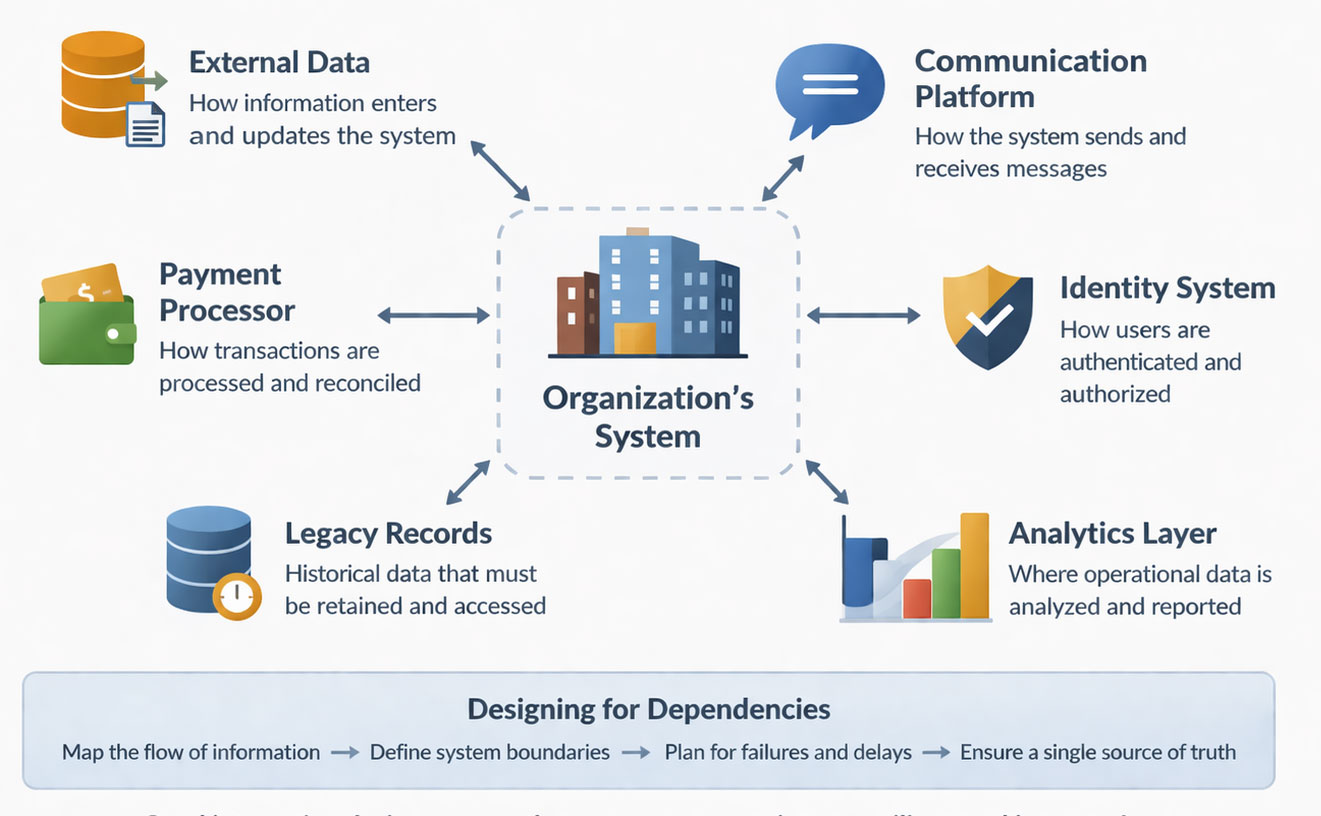

Designing for Dependencies
A system rarely lives alone. It may depend on external data sources, communication platforms, identity systems, payment tools, analytics layers, or legacy records that still matter. The architecture needs to account for how information enters, where it remains authoritative, and what happens when external dependencies are delayed, incomplete, or inconsistent.

Why reporting starts at the architecture level

The same is true of reporting. Many reporting challenges do not originate in dashboards. They originate in architecture decisions made much earlier.

If the workflow states are poorly defined, if review history is not captured meaningfully, and if exceptions are invisible in the data model, then no reporting layer will fully recover what the system never represented well in the first place.

Architecture as a business decision

This is one reason architecture should be treated as a business decision as much as a technical one. The structure of the system shapes what the organization will later be able to see, control, explain, and change.

The bottom line

Before choosing tools or implementation patterns, make sure the architecture is being shaped by the work itself.

Otherwise the business may end up with a technically competent system that still does not fit the reality it was meant to support.
